3007H
.jpg)

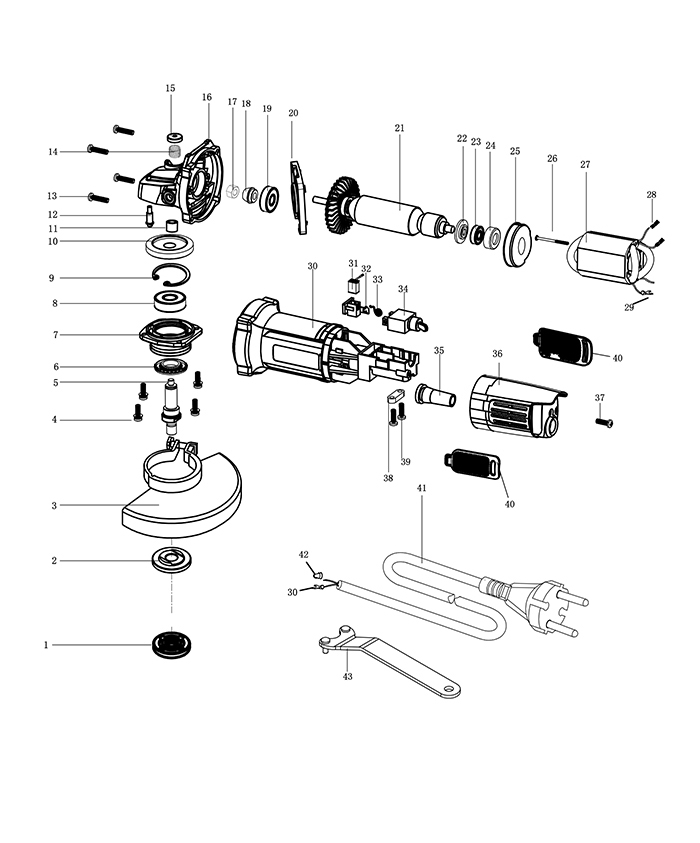

| 3007H SPARE PARTS LIST | ||
| Part No. | Part Name | Qty(数量） |
| 1 | Outer flange | 1 |
| 2 | Inner flange | 1 |
| 3 | Wheel guard | 1 |
| 4 | Screw M4x14 | 4 |
| 5 | Spindle | 1 |
| 6 | Dust cover | 1 |
| 7 | Front cover | 1 |
| 8 | 6201 Bearing | 1 |
| 9 | Washer 32 | 1 |
| 10 | Gear | 1 |
| 11 | Steel bush M12*8*8 | 1 |
| 12 | Selflock pin | 1 |
| 13 | Screw M4x25 | 4 |
| 14 | Selflock spring | 1 |
| 15 | Selflock cap | 1 |
| 16 | Gear box | 1 |
| 17 | Nut M6 | 1 |
| 18 | Pinion | 1 |
| 19 | 608 Bearing | 1 |
| 20 | Middle cover | 1 |
| 21 | Armature | 1 |
| 22 | Insulating washer | 1 |
| 23 | 607 Bearing | 1 |
| 24 | Bearing sleeve | 1 |
| 25 | Baffle plate | 1 |
| 26 | Screw ST4*65 | 2 |
| 27 | Stator | 1 |
| 28 | Connector M3*1.8 | 2 |
| 29 | Connector Type Y | 2 |
| 30 | Motor housing | 1 |
| 31 | Carbon brush | 2 |
| 32 | Brush holder | 2 |
| 33 | Disc spring 604 | 2 |
| 34 | Switch | 1 |
| 35 | Cord sleeve | 1 |
| 36 | Back cover | 1 |
| 37 | Screw ST4*11 | 2 |
| 38 | Cord clip | 1 |
| 39 | Screw ST 4*15 | 2 |
| 40 | Dust net | 2 |
| 41 | Cable | 1 |
| 42 | Wire cap | 1 |
| 43 | Wrench | 1 |
