801
.jpg)

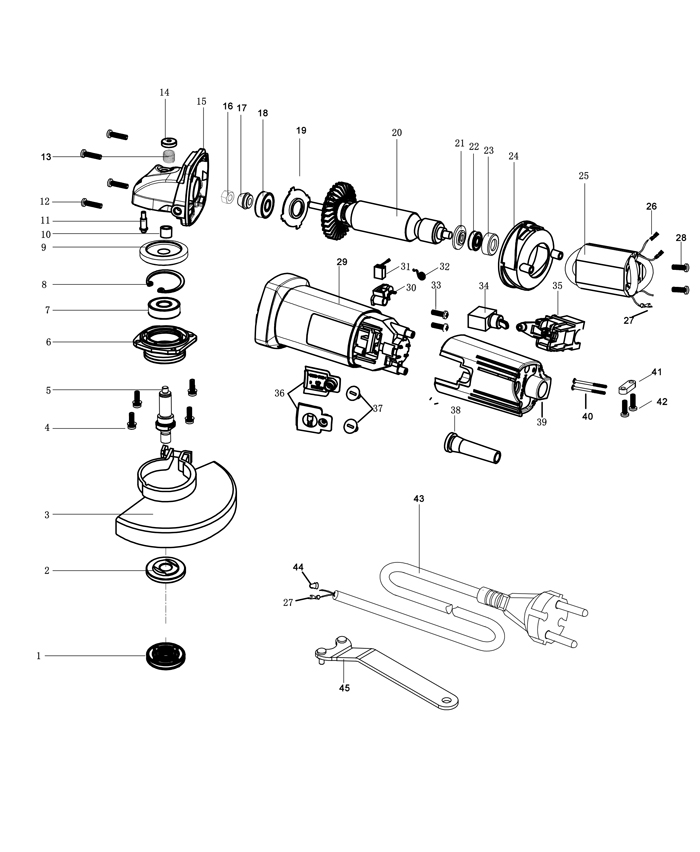

| 801（3027） SPARE PARTS LIST | ||
| Part No. | Part Name | Qty |
| 1 | Upper plate | 1 |
| 2 | Lower plate | 1 |
| 3 | Wheel guard | 1 |
| 4 | Screw M4*12 | 4 |
| 5 | Spindle | 1 |
| 6 | Front cover | 1 |
| 7 | 6201 Bearing | 1 |
| 8 | Washer 32 | 1 |
| 9 | Gear | 1 |
| 10 | Steel bush M12*8*8 | 1 |
| 11 | Selflock pin | 1 |
| 12 | Screw M4*20 | 4 |
| 13 | Selflock spring | 1 |
| 14 | Selflock cap | 1 |
| 15 | Gear box | 1 |
| 16 | Nut M7 | 1 |
| 17 | Pinion | 1 |
| 18 | 608 Bearing | 1 |
| 19 | Middle cover | 1 |
| 20 | Armature | 1 |
| 21 | Insulating washer | 1 |
| 22 | 607 Bearing | 1 |
| 23 | Bearing sleeve | 1 |
| 24 | Baffle plate | 1 |
| 25 | Stator | 2 |
| 26 | Connector M3*1.8 | 2 |
| 27 | Connector Type Y | 2 |
| 28 | Screw ST M3*10 | 1 |
| 29 | Motor housing | 2 |
| 30 | Brush holder | 2 |
| 31 | Carbon brush | 2 |
| 32 | Dsic spring | 2 |
| 33 | Screw ST M4*12 | 1 |
| 34 | Switch | 1 |
| 35 | Switch holder | 2 |
| 36 | Brush cover | 2 |
| 37 | Screw | 2 |
| 38 | Cord sleeve | 1 |
| 39 | Back cover | 1 |
| 40 | Screw ST M4*40 | 2 |
| 41 | Cord clip | 1 |
| 42 | Screw ST M4*16 | 2 |
| 43 | Cable | 1 |
| 44 | Wire cap | 1 |
| 45 | Wrench | 1 |
